Stainless Steel 317/317L Round Bars & Rods

Stainless Steel 317/317L Round Bars & Rods Manufacturer, Supplier & Exporter in Mumbai, India.

SS 317L DIN. 1.4438/1.4307 Hollow Bars, Stainless Steel UNS S31700 Hexagonal Bars, ASTM A276 SS 317 Triangular Bars, SS 317 WNR. 1.4449 Flat Bars, Stainless Steel 317/317L Hexagonal Bars, Stainless Steel 317 Square Bars, SS 317L Bright Round Bars, SS 317L UNS S31703 NO.4 Finish Bars, Stainless Steel 317/317L Round Bars, SS 317 Matt Finish Round Bars, ASTM A479 SS 317L Threaded Bars, Exporter in Mumbai, India.

Reninox Steel has established itself as a trusted manufacturer, supplier, and stockist of premium-quality Stainless Steel 317/317L Round Bars and Rods, catering to a wide range of industrial applications worldwide. In today’s industrial landscape, the demand for high-performance materials that can withstand extreme environments is rapidly increasing. Among the most reliable materials available, Stainless Steel 317 and 317L stand out due to their superior corrosion resistance, strength, and durability.

Stainless Steel 317 and 317L Round Bars are austenitic stainless steels that contain higher amounts of molybdenum compared to conventional grades like 304 and 316. This enhanced composition provides excellent resistance to chemical corrosion, especially in chloride-rich environments.

One of the key advantages of SS 317/317L Square Bar is its performance in highly acidic environments, making it ideal for chemical processing and petrochemical industries. The low carbon content in 317L also improves weldability and reduces the risk of carbide precipitation during welding.

Industries such as marine, pharmaceuticals, and power plants rely heavily on these SS 317 Hex Bar due to their durability and long service life. Additionally, their excellent mechanical properties ensure stability even under high temperatures and pressure.

Stainless Steel 317/317L Forged Bright Bars, designed to meet the demanding requirements of various industrial applications. Our products are known for their superior corrosion resistance, high strength, and excellent durability, making them ideal for use in harsh and corrosive environments.

Stainless Steel 317/317L Round Bars & Rods Specification

Dimensions DIN, EN, ASTM, JIS, ASME, BS, AISI
Standard ASTM A479, ASTM A276, AMS 5511, AMS 5513, AMS 5647
Hex Bar size 2-100mm A/F
Round bar size Diameter: 3-~800mm
Flat bar size Thickness: 2 -100mm
Width: 10 to 500mm
Angle bar size 3mm*20mm*20mm~12mm*100mm*100mm
Square bar size 4 to 100mm
Channel Bar 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness
Rectangular Bars Section 3.0 to 12.0mm thickness
Threaded Bar Billet Size 1/2 to 495mm Diameter
Rectangles Size 33 x 30mm to 295 x 1066mm
Hollow Bar 32mm OD x 16mm ID to 250mm OD x 200mm ID)
Tolerance H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements
Finish Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black
Surface Hot Rolled Pickled, Bright, Sand Blasting Finished, Cold Drawn, Hairline,Polished
Condition Hardened & tempered, annealed
Technique Cold Drawn, Hot Rolled, Forged Round Bar,Cold Rolled, Rod
Processing Bar cutting to 650mm
Form Rod, Round, Channel Bar, T-Bar, Flat Bar, Precision Ground Bar, Blocks, Square, Rings, Round Rod, Triangle, Hollow, Rectangle, Threaded, Hex (A/F), Profiles, Half Round Bar, Ingot, Billet, I/H Bar, Forging etc.

Stainless Steel 317L Polish Bars, Stainless Steel 317/317L Traingular Bars, SS 317 UNS S31700 Bright Polished Bars, SS 317 WNR. 1.4449 Rough Turned Bars, SS 317/317L ASME SA479 Hexagonal Bars, Stainless Steel 317/317L Hex Bars, SS 317/317L ASTM A276 Flat Bars, Stainless Steel 317L WNR. 1.4438/1.4307 Round Bars, 317 SS Flat Bars Supplier in Mumbai, India.

Stainless Steel 317/317L Round Bars Equivalent Grades

STANDARD UNS WNR. EN JIS
SS 317 S31700 1.4449 - SUS 317
SS 317L S31703 1.4438 X2CrNiMo18-15-4 SUS 317L

AISI 317/317L Stainless Steel Round Bars Chemical Composition

Grade C Mn Si P S Cr Mo Ni Fe
SS 317 0.08 max 2 max 1.0 max 0.045 max 0.030 max 18 – 20 3.0-4.0 11.0-15.0 57.845 min
SS 317L 0.035 max 2 max 1.0 max 0.045 max 0.030 max 18 – 20 3.0-4.0 11.0-15.0 57.89 min

Mechanical Properties of Forged Stainless Steel 317/317l Round Bar

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.0 g/cm3 1400 °C (2550 °F) Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205 35 %

Hot Rolled Stainless Steel 317/317L Round Bar Dimensions

Diameter or Width
(mm)		 Weight per meter Sectional Area Perimeter
Square
(kg)		 Round
(kg)		 Square
(cm²)		 Round
(cm²)		 Square
(cm)		 Round
(cm)
5.0 0.20 0.15 0.25 0.20 2.0 1.57
5.5 0.24 0.19 0.30 0.24 2.2 1.78
6.0 0.28 0.22 0.36 0.28 2.4 1.88
7.0 0.38 0.30 0.49 0.38 2.8 2.20
8.0 0.50 0.39 0.64 0.50 3.2 2.51
9.0 0.64 0.50 0.81 0.64 3.6 2.83
10 0.73 0.63 1.00 0.79 4.0 3.14
11 0.95 0.75 1.21 0.95 4.4 3.46
12 1.13 0.89 1.44 1.13 4.8 3.77
14 1.54 1.21 1.96 1.54 5.6 4.40
16 2.01 1.58 2.56 2.01 6.4 5.03
18 2.54 2.00 3.24 2.54 7.2 5.65
20 3.14 2.47 4.00 3.14 8.0 6.28
22 3.80 2.98 4.84 3.80 8.8 6.91
25 4.91 3.85 6.25 4.91 10.0 7.85
28 6.15 4.83 7.84 6.16 11.2 8.80
32 8.04 6.31 10.24 8.04 12.8 10.05
36 10.17 7.99 12.96 10.18 14.4 11.31
40 12.56 9.86 16.00 12.57 16.0 12.57
45 15.90 12.49 20.25 15.90 18.0 14.14
50 19.62 15.41 25.00 19.64 20.0 15.71
56 24.62 19.34 31.36 24.63 22.4 17.59
63 31.16 24.47 36.69 31.17 25.2 19.79
71 39.57 31.08 50.41 39.59 28.4 22.31
80 50.24 39.46 64.00 50.27 32.0 25.13

SS 317/317L Round Bars & Rods Price List In India

317/317L SS Round Bar Grade 317/317L SS Round Bar Dimensions 317/317L SS Round Bar Price
317/317L SS Round Bar 0.1-500mm US $600.00-$2600.00 / Ton
317/317L SS Round Bar 5.5mm-500mm US $600.00-$3600.00 / Ton
317/317L SS Round Bar 3mm-800mm US $500.00-$3000.00 / Ton
317/317L SS Round Bar 5mm-300mm US $1200.00-$3150.00 / Ton
317/317L SS Round Bar 2mm-300mm US $600.00-$2600.00 / Ton

Available Types of Stainless Steel 317/317L Round Bars & Rods

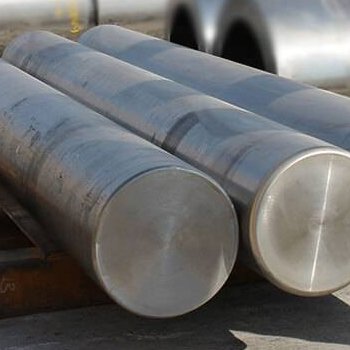

Stainless Steel 317/317L Round Bars

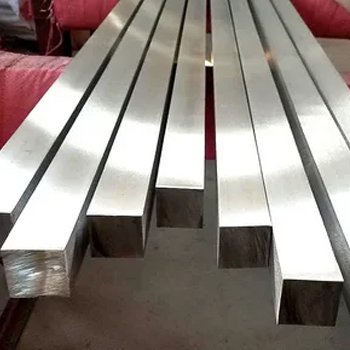

Stainless Steel 317/317L Square Bars

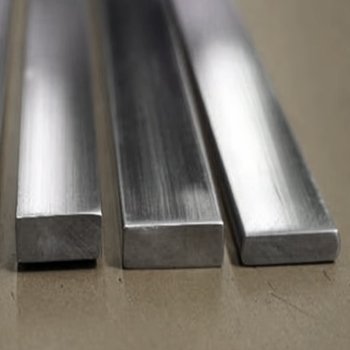

Stainless Steel 317/317L Rectangular Bars

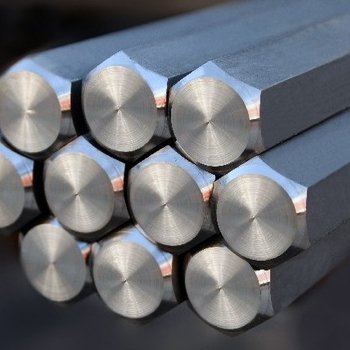

Stainless Steel 317/317L Hex Bars

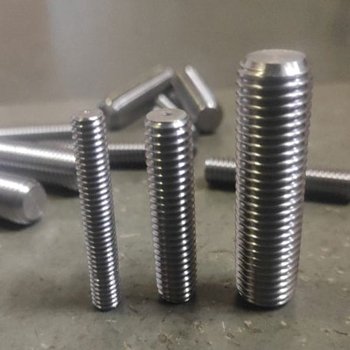

Stainless Steel 317/317L Threaded Rods

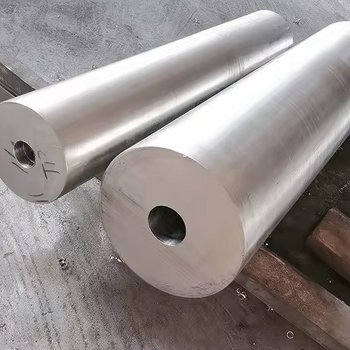

Stainless Steel 317/317L Hollow Bars

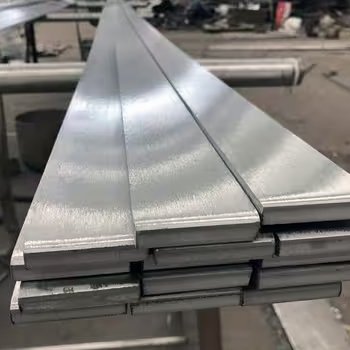

Stainless Steel 317/317L Flat Bars

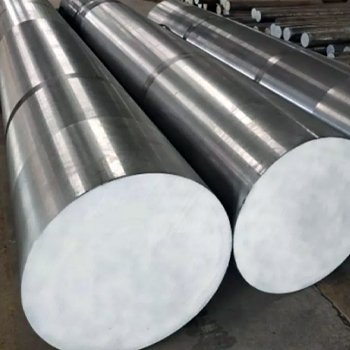

Stainless Steel 317/317L Bright Bars

Processing of Stainless Steel 317/317L Round Bars & Rods

Round bar Cutting Products cut include Round bars, Flat bars, Hex bars, Square bars, Tubing and Hollow bars, Pipe, Angles, channels, Beams and Tees. Thickness range is 1/16″ to 28″ diameter
Round bar Production Cutting We can provide production cutting for product diameters up to 4″. We utilize Amanda Production Equipment to achieve these precision cuts with tight tolerances.
Round bar Polishing Products polished included all tubular products, with OD & ID polishing available, Round bars, Square bars, Hex & Flat bars, Angles, Uneven Leg Angles, beams, and other shapes.

Stainless Steel 317/317L Round Bar Surface Finish

SRE Slit rolled edge BD Bright drawn
RT Rough turned/peeled P&T Peeled and turned
PR Peeled and reeled ST Smooth turned
HRAP Hot rolled annealed and pickled CF Cold finished
P Polished CD Cold drawn
HF Hot finished CG Centreless ground

Stainless Steel 317/317L Round Bar Sizes Chart

US Bar Metric Japanese Canadian/ASTM
Diameter(Inch) Bar Size Diameter (millimeter) Bar Size Diameter (millimeter) Bar Size Diameter (millimeter2) Bar Size
0.250 #2 5 5 6 6 100 10M
0.375 #3 5.5 5.5 10 10 200 15M
0.500 #4 6 6 13 13 300 20M
0.625 #5 7 7 16 16 500 25M
0.750 #6 8 8 19 19 700 30M
0.875 #7 9 9 22 22 1000 35M
1.000 #8 10 10 25 25 1500 45M
1.125 #9 11 11 29 29 2500 55M
1.250 #10 12 12 32 32
1.375 #11 14 14 35 35
1.500 #12 16 16 38 38
1.625 #13 18 18 41 41
1.750 #14 20 20 44 44
1.875 #15 22 22 48 48
2.000 #16 25 25 51 51
2.250 #18 28 28 57 57
32 32
36 36
40 40
44 44
50 50

Stainless Steel 317/317L Rod Sizes

Weight Dia Weight Dia
per metre (kg) (mm) per metre (kg) (in)
0.10 4mm 0.14 3/16"
0.06 3mm 0.06 1/8"
0.22 6mm 0.39 5/16"
0.16 5mm 0.25 1/4"
0.30 7mm 0.56 3/8"
0.62 10mm 1.00 1/2"
0.40 8mm 0.77 7/16"
0.89 12mm 1.22 9/16"
1.40 15mm 1.89 11/16"
3.88 25mm
1.22 14mm 1.56 5/8"
2.01 18mm 3.07 7/8"
1.59 16mm 2.25 3/4"
3.00 22mm
2.48 20mm 4.03 1"
3.57 24mm

Stainless Steel 317/317L Square Bar Sizes

SS Square bar – metric sizes and weights
Square bar Size KG’s per Metre Standard Length (metres) Colour Code
12 x 12 1.16 6.0 Pink
10 x 10 0.81 6.0 Yellow
20 x 20 3.22 6.0 Green
40 x 40 12.8 6.0 Yellow
16 x 16 2.06 6.0 Grey
32 x 32 8.24 6.0 Orange
25 x 25 5.03 6.0 Purple
50 x 50 20.12 6.0 Green

Stainless Steel 317/317L Hex Bar Size Chart

Size in Inches Wt per inch Wt per Ft
1/4″ 2.160 0.180
3/16″ 1.248 0.104
3/8″ 4.920 0.420
5/16″ 3.480 0.290
1/2″ 8.880 0.740
7/16″ 6.72 0.560
5/8″ 13.80 1.150
9/16″ 11.16 0.930
3/4″ 19.92 1.660
11/16″ 16.68 1.390
7/8″ 27.60 2.300
13/16″ 23.40 1.950
1″ 34.80 2.90
15/16″ 31.20 2.600
1-1/8″ 44.40 3.700
1-1/16″ 39.60 3.30
1-5/16″ 61.20 5.100
1-1/4″ 55.20 4.600
1-7/16″ 73.20 6.100
1-3/8″ 67.20 5.600
1-5/8″ 93.60 7.800
1-1/2″ 79.20 6.600
1-7/8″ 124.80 10.400
1-3/4″ 108.36 9.030
2-1/4″ 179.04 14.920
2″ 141.60 11.80
2-1/2″ 221.04 18.42
2-3/8″ 203.04 16.920
3″ 318.36 26.53

Stainless 317/317L Flat Bar Sizes

Size (inch) sizes in mm Thickness (in Inches) Thickness (mm)
1 25 3/16 to 4/5 5 to 20
7/8 22 2/3 to 5/7 17 & 18
1-1/4 32 1/4 to 4/5 6 to 20
1-3/16 30 3/16 to 4/5 5 to 20
1-4/7 40 3/16 to 1 5 to 25
1-3/8 35 3/16 to 3/16 5 to 20
1-6/7 47 2/3, 1 & 1-1/4 17,25 & 32
1-7/9 45 3/16 to 1 5 to 25
2-1/16 55 3/16 to 1 5 to 25
2 50 3/16 to 1-1/4 5 to 32
2-3/8 60 3/16 to 1-3/8 5 to 35
2-1/4 57 1-1/4 32
2-5/9 65 3/8 to 1-3/16, & 1-3/8 10 to 30 & 35
2-1/2 63 3/8 to 1-3/16 10 to 30
3 75 5/16 to 1 8 to 25
2-3/4 70 1/4 to 1, & 1-4/7 6 to 25 & 40
3-1/2 90 5/16- 4/5 8 to 20
3-1/8 80 5/16 to 4/5 8 to 20
4 100 5/16, 3/8, 1/2 8, 10, 12

Stainless Steel 317/317L Round Bars & Rods Weight Chart

Diameter Weight Chart Dia Weight Chart
(mm) per metre (kg) (in) per metre (kg)
3mm 0.06 1/8″ 0.06
4mm 0.10 3/16″ 0.14
5mm 0.16 1/4″ 0.25
6mm 0.22 5/16″ 0.39
7mm 0.30 3/8″ 0.56
8mm 0.40 7/16″ 0.77
10mm 0.62 1/2″ 1.00
12mm 0.89 9/16″ 1.22
14mm 1.22 5/8″ 1.56
15mm 1.40 11/16″ 1.89
16mm 1.59 3/4″ 2.25
18mm 2.01 7/8″ 3.07
20mm 2.48 1″ 4.03
22mm 3.00
24mm 3.57
25mm 3.88

Stainless Steel Round Bars & Rods Manufacturing Standard

Standard Description
ASTM A276 Standard Specification for Stainless Steel Bars and Shapes
ASTM A314 Standard Specification for Stainless Steel Billets and Bars for Forging
ASTM A493 Standard Specification for Stainless Steel Wire and Wire Rods for Cold Heading and Cold Forging
ASTM A564 Standard Specification for Hot-Rolled and Cold-Finished Age-Hardening Stainless Steel Bars and Shapes
ASTM A565 Standard Specification for Martensitic Stainless Steel Bars, Forgings, and Forging Stock for High-Temperature Service
ASTM A582 Standard Specification for Free-Machining Stainless Steel Bars
ASTM A666 Standard Specification for Annealed or Cold-Worked Austenitic Stainless Steel Sheet, Strip, Plate, and Flat Bar
ASTM A484 Standard Specification for General Requirements for Stainless and Heat-Resisting Bars, Billets, and Forgings
ASTM A479 Standard Specification for Stainless Steel Bars and Shapes for Use in Boilers and Other Pressure Vessels

Other Types Of Stainless Steel 317/317L Bars & Rods

  • Stainless Steel 317L Flat Bar
  • Stainless Steel 317 Hollow Bar
  • 317L Stainless Steel Triangular Bars
  • 317 Stainless Steel Hollow Bar
  • Stainless Steel 317L T-Bar
  • Stainless Steel 317L Rods
  • Stainless Steel 317 Polished Bar
  • Stainless Steel 317L Hot Rolled Bar Exporter
  • Stainless Steel 317L Polished Flat Bar
  • 317 SS Hexagon Bar Manufacturer
  • Stainless Steel 317 Precision Ground Bar
  • ASTM A276 317L SS Cold Rolled Bar
  • SS 317 Half-Round Bar
  • SS 317 Rods Distributor
  • SS 317 Triangular Bars Stockist
  • Stainless Steel 317L Round Bar
  • Stainless Steel 317 Square Bar
  • SS 317L Threaded Bar
  • Stainless Steel 317 Flat Bar Rolled Edge
  • Stainless Steel 317L Threaded Bar
  • SS 317L Bright Bar
  • ASTM A276 Type 317 Rod
  • SS 317 T-Bar
  • ASTM A276 SS 317L Round Bar
  • Stainless Steel 317 Round Rod
  • Stainless Steel 317 Hot Rolled Bar
  • 317L Stainless Steel Forged Bars
  • Stainless Steel 317 Hexagonal Bar
  • 317 Stainless Steel Bar
  • SS 317L Hollow Bar Supplier in Mumbai
  • Stainless Steel 317 Hollow Bar
  • SS 317L Square Bar
  • 317L Stainless Steel Hex Bar
  • Stainless Steel 317L Black Bar
  • Stainless Steel 317 Black Bar
  • ASTM A276 SUS317L Precision Ground Bar
  • Stainless Steel 317L Flat Bars
  • 317 SS Hex Bar Stockist
  • SS 317 Forged Bars
  • SS 317 Rods
  • SS 317 Cold Drawn Round Bar
  • UNS S31703 Bars
  • 1.4438 Bright Bar
  • SS 317L Rods Manufacturer
  • SS 317L Cold Rolled Bar Stockholder
  • DIN 1.4449 Round Bars
  • SS 317 Hollow Bar
  • 317L Stainless Steel Half Round Bar Manufacturer

We provides Stainless Steel 317/317L Round Bar at reasonable prices in the market. You can Contact us to get the updated price list.

Get Quote
  • Exporting Countries of Stainless Steel 317/317L Round Bars & Rods
    We Export this Stainless Steel 317/317L Round Bars & Rods to countries such as Afghanistan, Albania, Andorra, Austria, Bahrain, Bangladesh, Bhutan, Brunei, Belarus, Belgium, Bulgaria, Cambodia, China, Cyprus, Croatia, Czech Republic, Denmark, Estonia, Egypt, Finland, France, Germany, Greece, Georgia, Hungary, Iceland, Ireland, Italy, Indonesia, Iran, Iraq, Israel, Japan, Jordan, Kazakhstan, Kuwait, Kyrgyzstan, Lebanon, Latvia, Latin America, Liechtenstein, Lithuania, Luxembourg, Malta, Moldova, Monaco, Malaysia, Maldives, Mongolia, Myanmar (Burma), Nepal, North Korea, Netherlands, Norway, Oman, Poland, Portugal, Pakistan, Palestine, Philippines, Qatar, Russia, Romania, Russia, San Marino, Serbia and Montenegro, Slovakia, Slovenia, Spain, Sweden, Switzerland, Saudi Arabia, Singapore, South Korea, South Africa, Sri Lanka, Syria, Taiwan, Tanzania, Tajikistan, Thailand, Turkey, Turkmenistan, Ukraine, United Kingdom, United Arab Emirates (UAE), Uzbekistan, Vietnam, Yemen.
  • Supplying Stainless Steel 317/317L Round Bars & Rods to Following Domestic Cities
    We Supply Stainless Steel 317/317L Round Bars & Rods to cities including Mumbai, Delhi, Kolkata, Chennai, Bengaluru, Hyderabad, Ahmadabad, Pune, Surat, Jaipur, Kanpur, Lucknow, Nagpur, Ghaziabad, Indore, Coimbatore, Kochi, Patna, Kozhikode, Bhopal, Thrissur, Vadodara, Agra, Malappuram, Thiruvananthapuram, Kannur, Ludhiana, Nashik, Vijayawada, Madurai, Varanasi, Meerut, Faridabad, Rajkot, Jamshedpur, Srinagar, Jabalpur, Asansol, Vasai Virar City, Allahabad, Dhanbad, Aurangabad, Amritsar, Jodhpur, Ranchi, Raipur, Kollam, Gwalior, Durg-Bhilainagar, Chandigarh, Tiruchirappalli, Kota.
